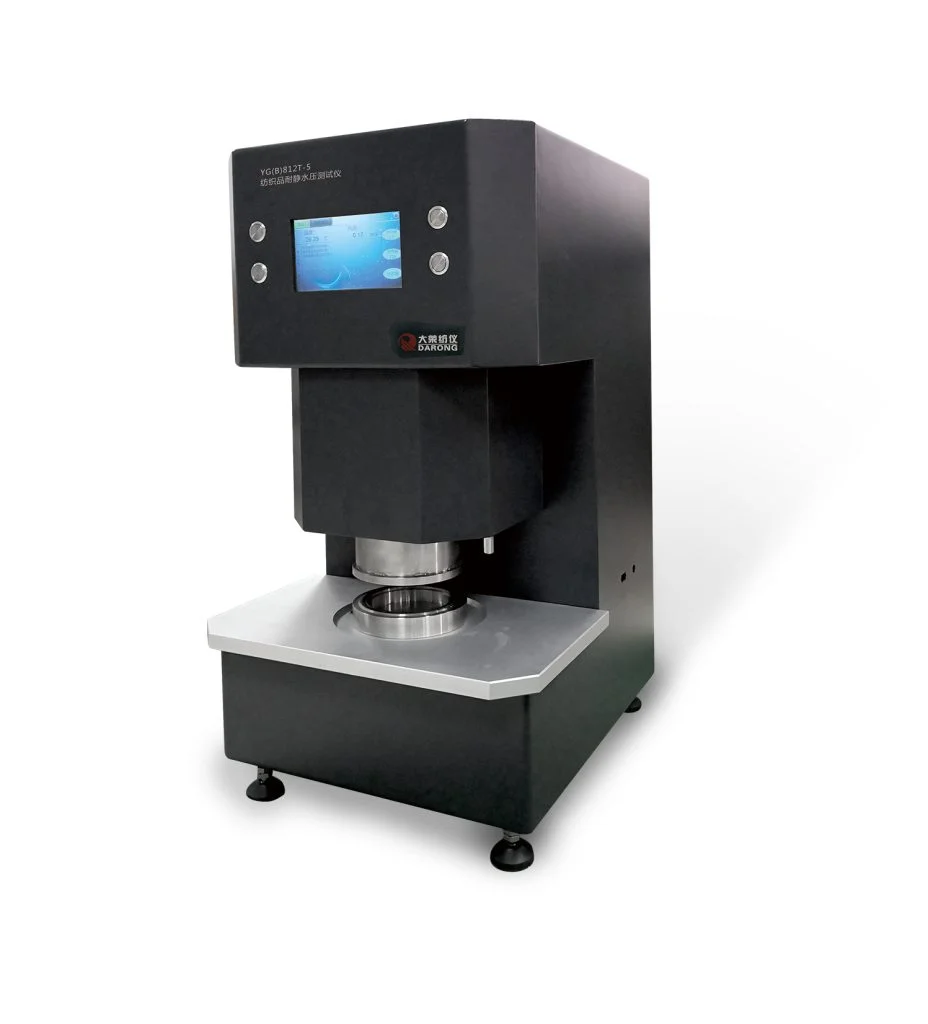

Textile Hydrostatic Head Water Permeability Testing Machine

YG(B)812Q Textile Hydrostatic head testing equipment
[Scope of application] It is used for the determination of the impermeability of all kinds of waterproof fabrics (such as canvas, coated cloth, tent cloth, tarp, rain proof clothing cloth and geotextile materials, etc.).[Relevant standards]
GB/T4744 (national drafting unit) FZ/T01004 AATCC127 DIN 53886 JISL1092 BS7209, etc.
[ Instrument characteristics ]
1, gas pressure, fast reaction, not limited by moving range;
2. Automatic grade evaluation assistance system for test results;
3, pneumatic clamping sample, convenient, fast, stable and consistent;
4, shadowless lighting system, convenient for users to observe the test sample status;
5, with constant pressure warning function, reduce test nursing time;
6, using industrial processor precise program control;
7, Germany imported high precision airflow control valve, control pressure speed more uniform;
8. Use 24-bit high precision AD conversion chip to collect real-time pressure value;
9, 7 inch color touch screen display control, Chinese and English menu freely switch, system time freely set;
10, built-in 3 test methods, can meet the test requirements of different standards to the greatest extent;
11, a variety of pressure units (Pa, kPa, mmH20, mmHg) can be freely switched, and provide unit conversion coefficient table for inquiry, can meet the requirements of different national standards.
[ Technical parameters ]
1. Technical Indicators:
2, water pressure rise rate: 1kPa/min ~ 100kpa/min
3, working mode: 3 kinds (pressurization, constant pressure timing, constant pressure timing)
4, display mode: color screen display, touch screen Chinese and English menu operation
5, power supply: AC220V±10% 50Hz 200W
6, the instrument size :(550×400×600)mm
7, weight: about 70kg
