Water Flow Meter

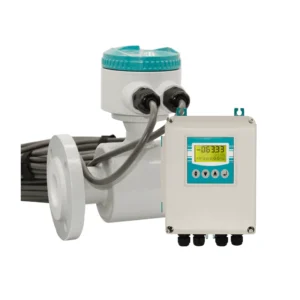

Apure AYT Digital Liquid Magnetic Flow Meter
| Flow direction | positive and negative net flow |
| Measure extention ratio | 150:1 |
| Repeating erro | ±0.1% of the meterage |
| Accuracy grade | pipeline style: 0.5 1.0 |
| The temperature of themeasured medium | ordinary rubber underlay:-20~+60 High temperature rubber underlay:-20~+90 Polythene underlay: -30~+100 High temperature underlay:-30~+180 |
| Rating work pressure | Pipeline style : DN10-65:≤2.5MPA DN80-DN150:≤1.6MPA DN200- DN 1200:≤1.0MP |

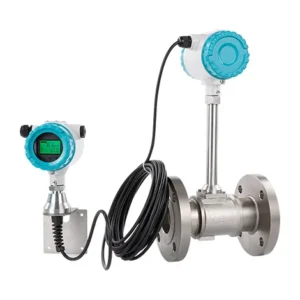

Vortex Flowmeter I Steam I Gas I Air
| Specification | Details |
|---|---|
| Product | Vortex Digital Flow Meter |
| Model | K25-VT5R6PS |
| Medium | Steam / Gas / Air |
| Material | SS304 |
| Working Temperature | -40°C to 250°C |
| Normal Pressure | 1.6 MPa |
| Accuracy | ±1.0% |
| Flange | ANSI / DIN / JIS |
| Power Supply | 24VDC |
| Output | 4-20mA |
| Display | Instantaneous flow, Total flow |
| Additional Features | With Temperature & Pressure Compensation, Remote Display |
| Brand | Koncept |
| Origin | Italy |
| Warranty | 01 Year from the date of delivery |
